How To Connect An Irrigation Rotor Or Spray Body To The End Of A Lateral Line

Installing an Irrigation Rotor or Spray body to the end of a lateral distribution line is usually done using an elbow fitting with an FPT output.   Similar to connections at the mid-way point in a lateral line you have options for connecting to the Rotor or Spray Body from your elbow fittings.  Here we illustrate a few of the common methods for installations using both conventional Insert Fittings and Blu-Lock.  If using PVC the same concepts will apply using either 1/2" or 3/4" Slip by FPT fittings.

KwikTap Saddles From Dawn Industries

BLU-LOCK

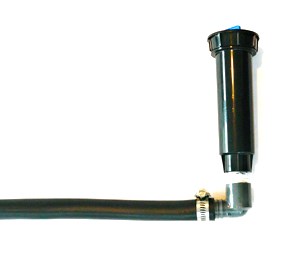

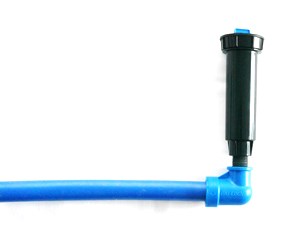

Shown With Schedule 80 Nipple Fitting

Shown With Schedule 80 Nipple Fitting

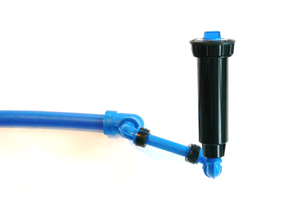

Shown With Swing Joint Assembly

Shown With Swing Joint Assembly

Product Options and Links

For 3/4” Tubing

· 1407-101 - 3/4” x 1/2” FPT

· 1407-007 - 3/4” x 3/4” FPT

For 1” Tubing

· 1407-130 - 1” x 1/2” FPT

· 1407-131 - 1” x 3/4” FPT

Product Options and Links

For 3/4” Tubing

· 37375 3/4” x 1/2” FPT

 No 3/4" FPT See Swing Joint Assemblies

For 1” Tubing

· 37675 1” x 1/2” FPT

· No 3/4" FPT See Swing Joint Assemblies

Continue to Swing Joint Assemblies, Risers, and Nipple Fittings
